Developer Guide

• Acknowledgements
• Setting up, getting started
• Design
• Implementation
• Documentation, logging, testing
• Appendix: Requirements
• Use Cases

Acknowledgements

• Thanks to Prof Damith C.Rajapakse and Boyd Anderson provide consulation for our tem.
• Thanks to the project team AY2122S1-TIC4001-F18-2.

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

• Architecture


• UI component (CLI, Input/ Output)
• Logic component (Execution, Command, Parser)
• Model component (Item, Expense, Income)

• Storage component API: Storage.java

  The Storage component,
  a. can save expenses.txt file to /file folder and load the expenses.txt file back /file folder with corresponding format.
  b. auto save when user execute edit, delete and add expense/ income command

  File format showing as below,

        Here are the items in your list:
        1.[E] [Meal] lunch ($40.0) (2021-Dec-01)
        2.[I] [OctSalary] salary ($4000.0) (2021-Dec-01)


• Common classes (ItemList)

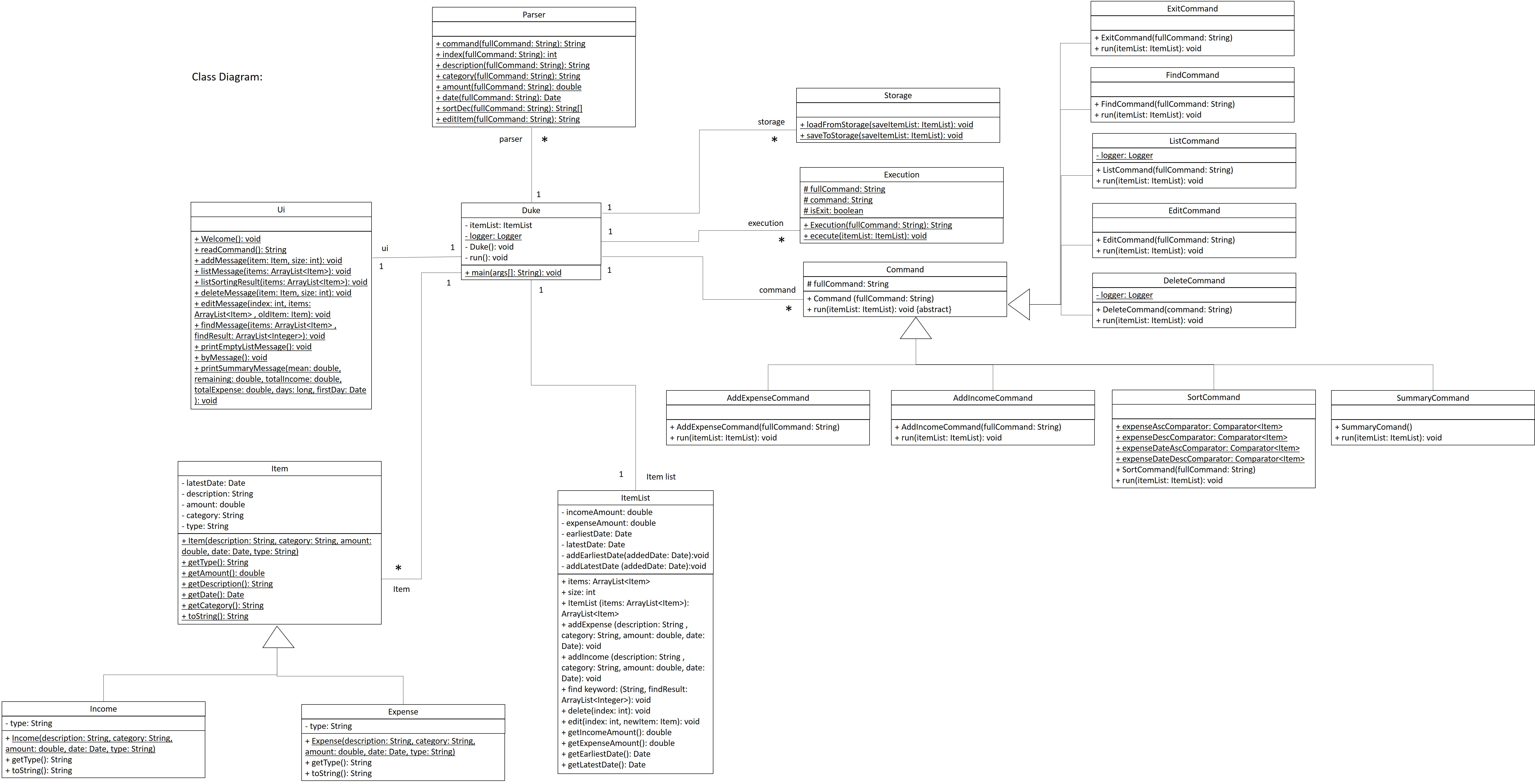

1. Class diagram (refer to the image below)

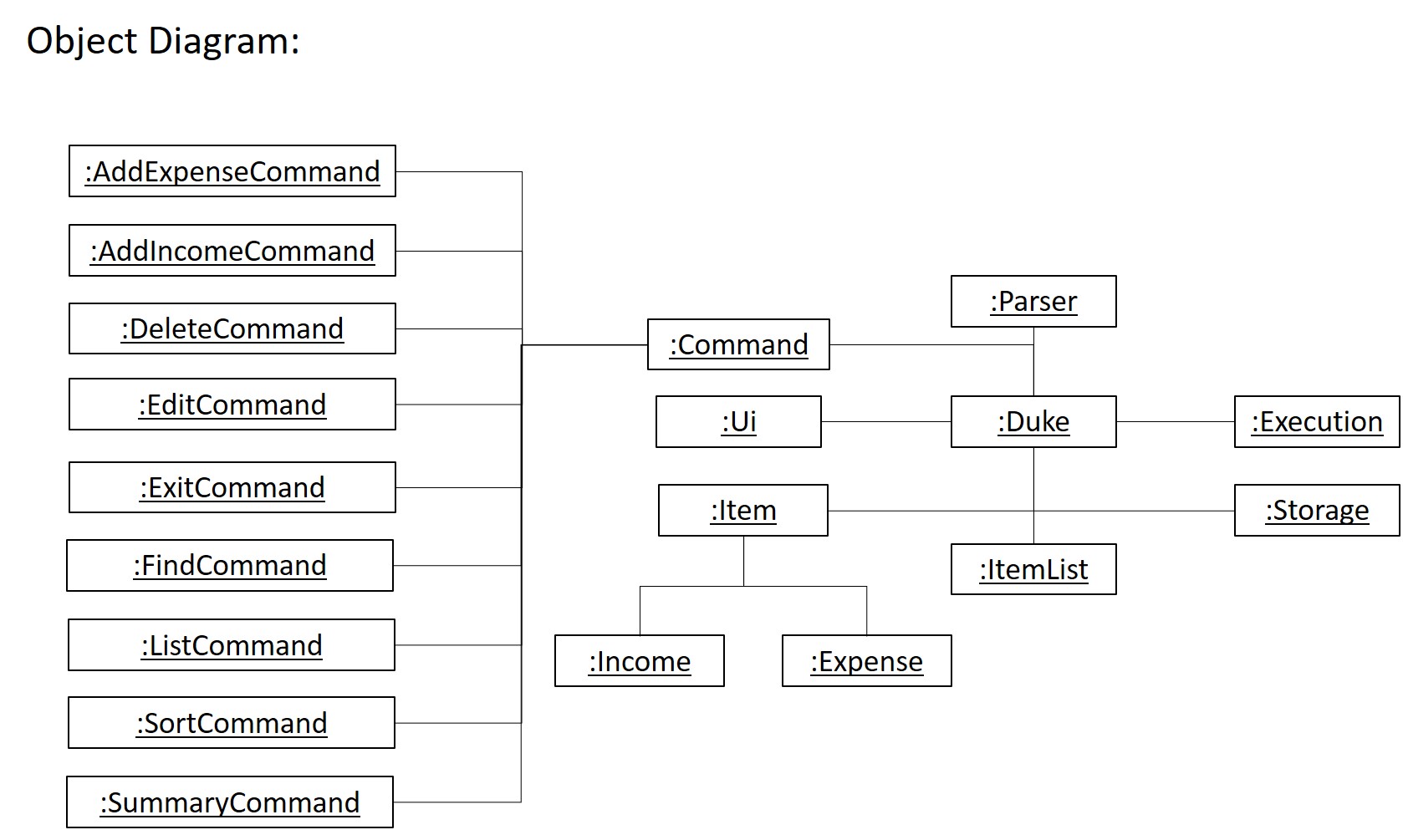

2. Object diagram


Implementation (Sequence Diagram)

• Find Command
  The user execute find KEYWORD command to search items contain KEYWORD in the item list.
  The working flow of the findCommand is shown in the sequence diagram below.

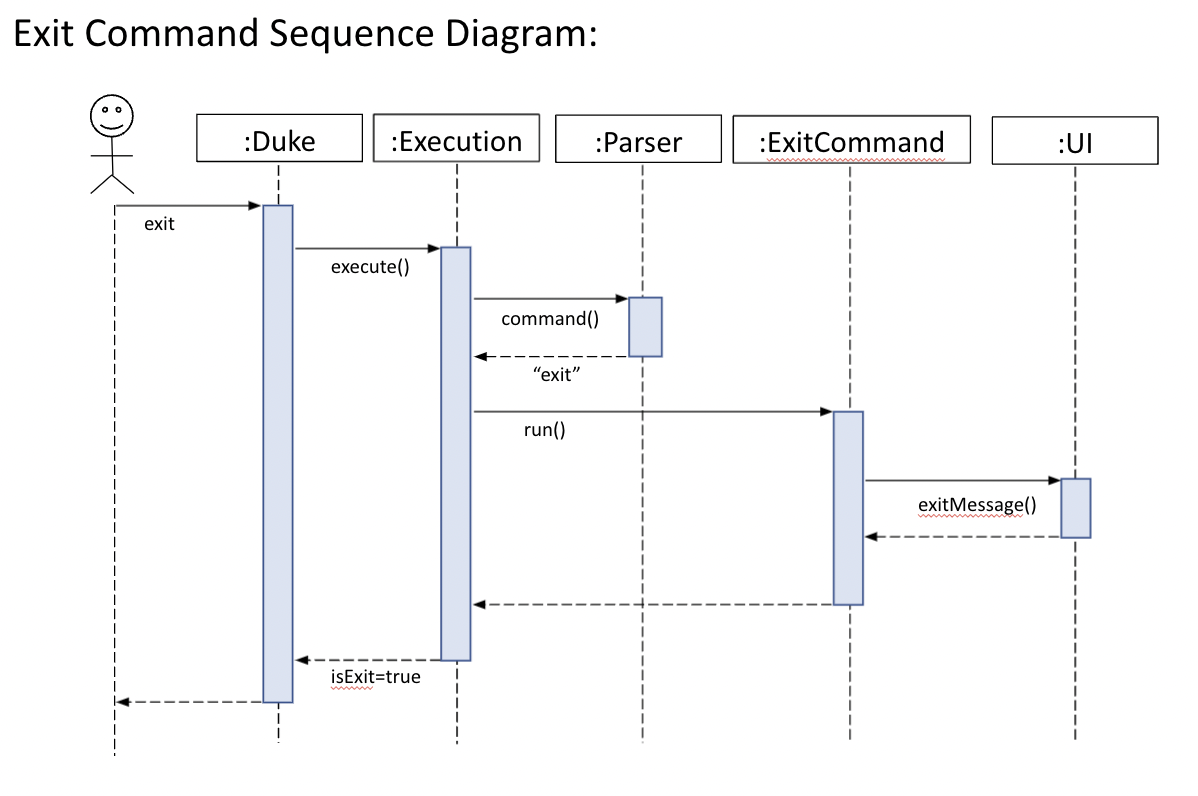

• Exit Command
  The user execute exit command to quit the program.
  The working flow of the exitCommand is shown in the sequence diagram below.

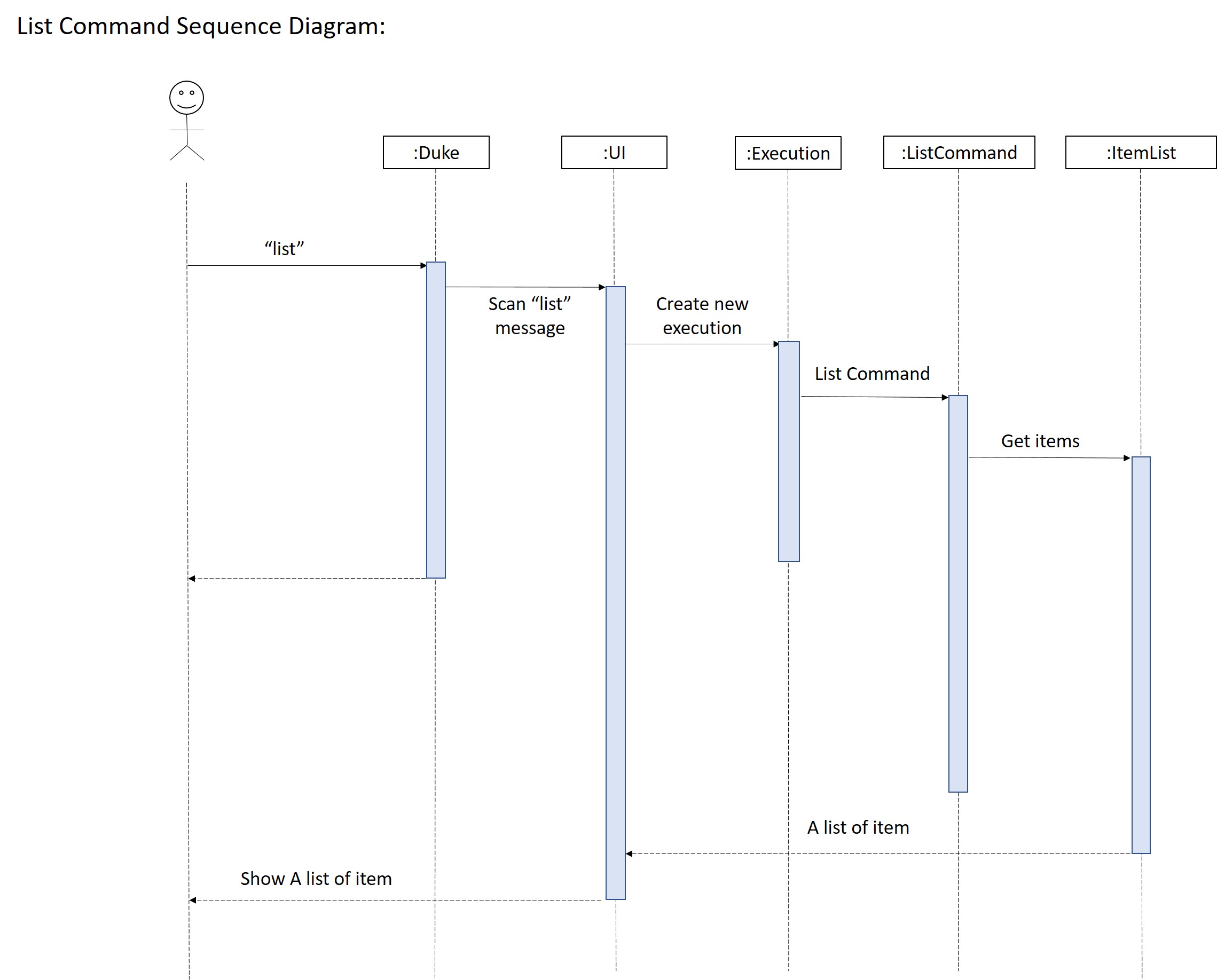

• List Command
  The user execute list command to show all the items in the list.
  UI scanned list command from user, Execution create a new ListCommand and run() to get the items from Arraylist, itemList return the items to UI and show to user.

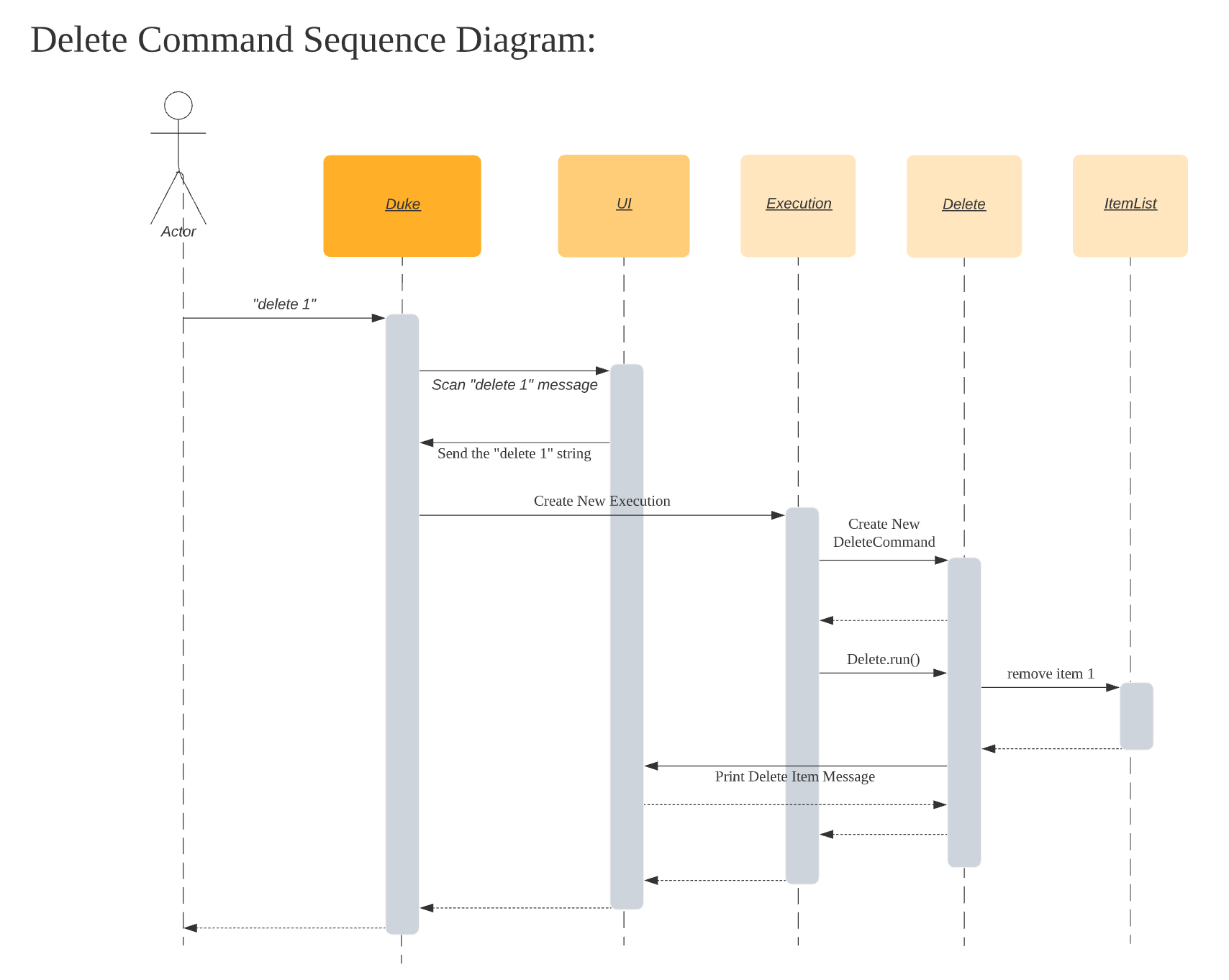

• Delete Command
  The user execute delete 5 command to delete the 5th item in the item list.
  The Execution type variable will be generated after user input scanned and in execution variable, the Delete command will be created and run() method in Delete class will be executed to remove the 5th item. After the item be removed, the delete information will be printed to show user which the deleted item’s details and remaining item quantity in the item list.

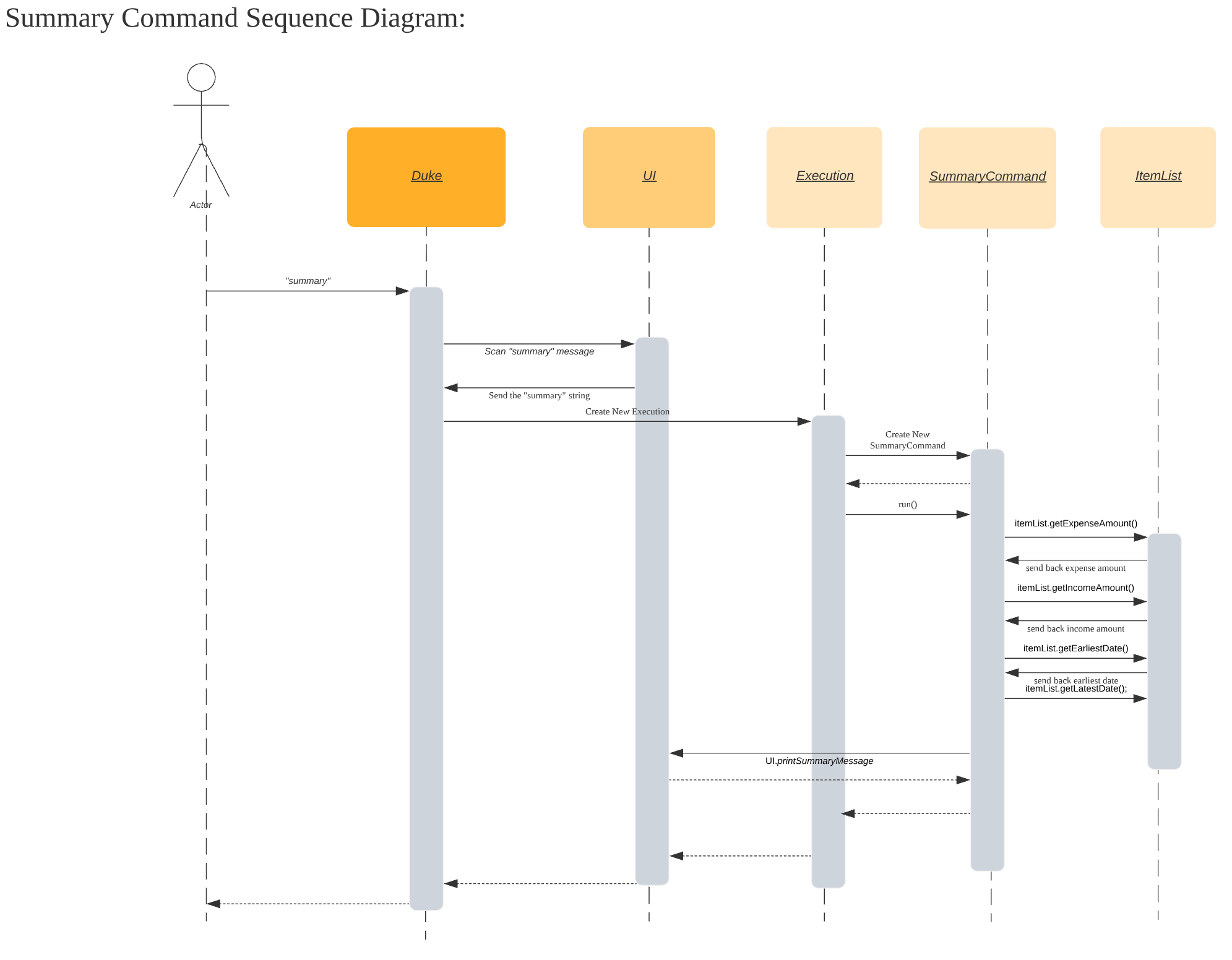

• Summary Command
  The user execute summary command to print the summary of usage.
  UI scanned summary command from user input, Execution create a new SummaryCommand and run() to print summary informtion.

• Add Command
  The user execute expense lunch /food /12 /12-10-2021 command to add expense item to item list.
  The user execute income Company A /salary /2000 /01-10-2021 command to add income item to item list.
  UI scanned expense or income command from user, Execution create a new AddExpenseCommand or new AddIncomeCommand.
  Execute run() and addExpense or addIncome items to item list and store the item list.
  After file store successfully to file storage, return the items to UI and show to user.


Documentation, logging, testing

• Testing Guide
  There are two ways to run tests:

  1. Using IntelliJ JUnit test runner. Run all tests, right-click on the src/test/java folder </br> a. choose Run ‘All Tests’ </br> b. Run a subset of tests, you can right-click on a test package, test class and select Run ‘ParserTest’ </br>
  2. Using Gradle Open a console and run the command gradlew clean test (Mac/Linux: ./gradlew clean test)

• Logging Guide

  1. We are using java.util.logging package for logging.
  2. The Logger class is used to manage the logging levels and logging destinations.
  3. The Logger for a class can be obtained using Logger.getLogger(Class) which will log messages according to the specified logging level.
  4. Log messages are output to a /log/*.log file by setting logger.setUseParentHandlers = false to disable showing on console output. The logger collect DeleteCommand, ListCommand class and etc.
  5. The output logging level by Level.INFO

Appendix: Requirements

Product scope

Target user profile

• has a need to manage and track incomes and expenses
• prefers desktop apps over other types
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition

• keep record of income and expense items
• track income and expense items easily
• analyse daily / monthly expense

User Stories

Version	As a …	I want to …	So that I can …
v1.0	user	add expense item with description and amount	know how much I spent on the item
v1.0	user	view all the expense items	know number of expense items
v1.0	user	delete the expense item	remove the expense item with wrong information
v1.0	user	have exit command	quit the system without using mouse
v2.0	user	add income item with description and amount	know how much I earned on the item
v2.0	user	sort the list in descending order of the amount	view the highest expenses quickly
v2.0	user	record the date of items	know when the items incurred
v2.0	user	classify items into categories	the distribution of my expenditure
v2.0	user	search items with keyword	view the specific item quickly
v3.0	user	sort the list in descending order of the date	know the most recent expenses quickly
v3.0	user	edit the item without deleting it	rectify the item with wrong information quickly
v3.0	user	get summary report of my existing item	know my total income and expense
v3.0	user	save item list as file	print record into hard copy
v3.0	user	read previous items from the file	continue to add items from the previous record

Use Cases

(For all use cases below, the System is EXPENSES MANAGEMENT SYSTEM (EMS) and the Actor is the user, unless specified otherwise)

Use case: Add Expense

1. User keys in expense details
2. EMS records the expense
3. EMS shows the expense added successfully
4. Data files updated automatically

Use case: Add Income

1. User keys in income details
2. EMS records the income
3. EMS shows the income added successfully
4. Data files updated automatically

Use case: List Items

1. User requests to view items
2. EMS shows the list of items

Use case: Delete Item

1. User requests to delete a specific item
2. EMS deletes the item from the list
3. EMS shows the item deleted successfully
4. Data files updated automatically

Use case: Find Items

1. User keys in the keyword to search
2. EMS performs searching
3. EMS displays the result

Use case: Edit Item

1. User request to edit a specific item with new item details
2. EMS updated the item in the list
3. EMS shows the item updated successfully
4. Data files updated automatically

Use case: Sort Item List

1. User request to sort the item list with the specific order
2. EMS sorts the list accordingly
3. EMS shows the sorted list

Use case: Summarize Items

1. User request for summary of the item list
2. EMS summarizes the list
3. EMS shows the summary report of the list

Use case: Exit

1. User requests to exit the program
2. EMS terminates safely

Non-Functional Requirements

• Should work on any mainstream OS as long as it has Java 11 or above installed.
• Should be able to hold up to 1000 persons without a noticeable sluggishness in performance.
• The command should be simple enough so that users are able to accomplish most of the tasks faster using typing than using the mouse.
• Should be easy for new users to get used to usage fast.

Glossary

Mainstream OS: Windows, Linux, Unix, OS-X
